Home / Products / Marine Rigging Shackles / G210 American Type D-Shaped Die Forged Shackle (316)

G210 American Type D-Shaped Die Forged Shackle (316)

G210 American D-shaped die-forged shackle (316) has extremely high corrosion resistance and durability and is widely used in harsh marine and chemical environments. Product sizes range from 12mm to 127mm, and single-piece weights range from 0.05kg to 42.5kg, covering a variety of different load requirements. Each size of the shackle is precision die-forged to ensure high strength and reliability, suitable for use in lifting, shipbuilding, and industrial fields.

Inquiry

Product Description

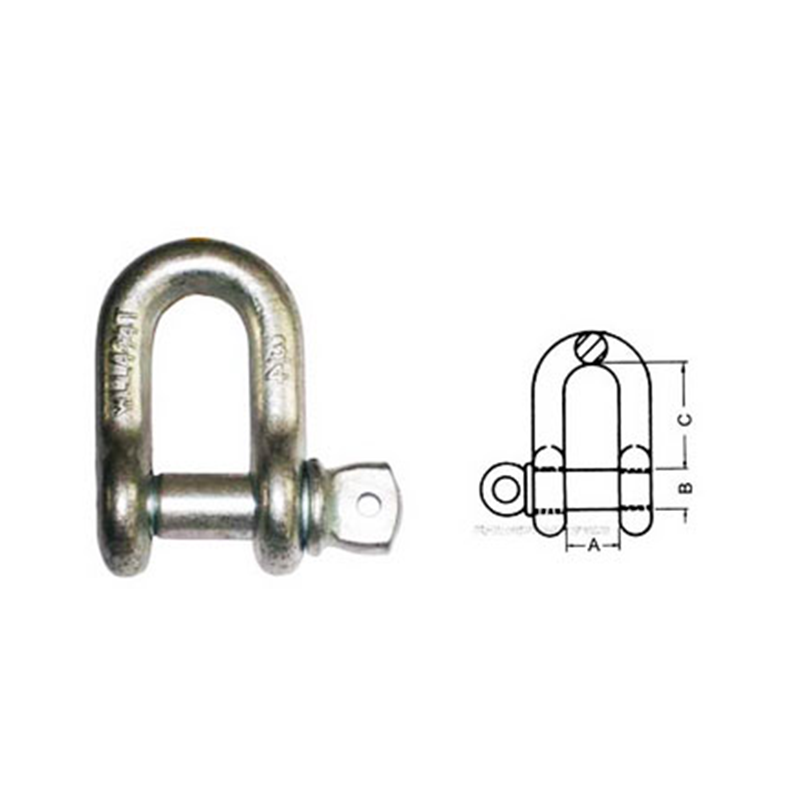

SPECIFICATION INCH WORKING      LOAD        T SIZEMM UNIT WEIGHTKG
A B C
1/4 1/2 12 7.9 22.4 0.05
5/16 3/4 13.5 9.7 26.2 0.08
3/8 1 16.8 11.1 31.8 0.13
7/16 1-1/2 19 12.7 36.6 0.18
1/2 2 20.6 16 41.4 0.27
5/8 3-1/4 27 19 50.8 0.57
3/4 4-3/4 31.8 22.3 60.5 1.19
7/8 6-1/2 36.6 25.4 71.4 1.43
1 8-1/2 43 28.7 81 2.15
1-1/8 9-1/2 46 31.7 90.9 3.06
1-1/4 12 51.6 35 100 4.11
1-3/8 13-1/2 57.1 38.1 111.3 5.28
1-1/2 17 60.4 41.4 122.2 7.23
1-3/4 25 73.1 50.8 146 12.13
2 35 82.5 57.1 171.5 19.19
2-1/2 55 104.9 69.9 203.8 32.27
3 85 127 82.5 215.9 42.50
