G209 American Type Bow End Shackle

G209 American bow end shackle product specifications cover multiple sizes, from 3/16 inches to 3 inches, and can withstand different workloads. The specific workload ranges from 1/3 ton to 85 tons to meet a variety of needs. Each specification undergoes strict quality control to ensure safe use in high-intensity working environments.

Inquiry

Product Description

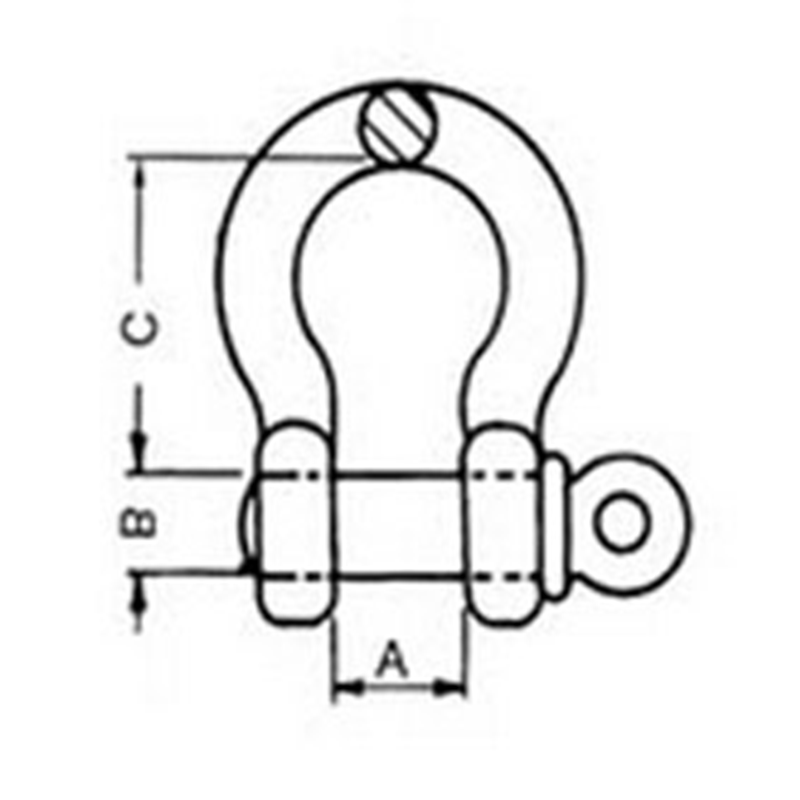

SPECIFICATION  INCH WORKING LOAD T SIZEMM UNIT WEIGHTKG
A B C
3/16 1/3 9.7 6.4 22.4 0.02
1/4 1/2 12 7.9 28.7 0.05
5/16 3/4 13.5 9.7 30.9 0.09
3/8 1 16.8 11.1 36.5 0.14
7/16 1-1/2 19 12.7 42.9 0.17
1/2 2 20.6 16 47.7 0.29
5/8 3-1/4 27 19 60.4 0.63
3/4 4-3/4 31.8 22.3 71.3 1.02
7/8 6-1/2 36.6 25.4 84 1.53
1 8-1/2 43 28.7 95.2 2.41
1-1/8 9-1/2 46 31.7 107.9 3.09
1-1/4 12 51.6 35 119.1 4.31
1-3/8 13-1/2 57.1 38.1 133.3 6.01
1-1/2 17 60.4 41.4 146 7.80
1-3/4 25 73.1 50.8 177.8 13.78
2 35 82.5 57.1 196.8 20.41
2-1/2 55 104.9 69.9 266.7 38.90
3 85 127 82.5 330.2 72
