German Standard Din763 Chain Link Chain

German standard DIN763 chain (link chain) is a high-quality long-link chain widely used in industrial lifting, traction, and fixed purposes. It has a solid structure, precise dimensions, and good performance. The chain size ranges from 2mm to 32mm, and the working load capacity ranges from 25kg to 8000kg, which can meet various needs from light to heavy operations. At the same time, it has good tensile strength, durability, and corrosion resistance, and can maintain stable performance even in harsh environments. The precise size and tolerance of the DIN763 chain (such as 2mm chain tolerance is ±0.5mm, 8mm chain is ±1mm) also ensure high adaptability and safety in use.

Inquiry

German Standard Din763 Chain Link Chain
German Standard Din763 Chain Link Chain

Product Description

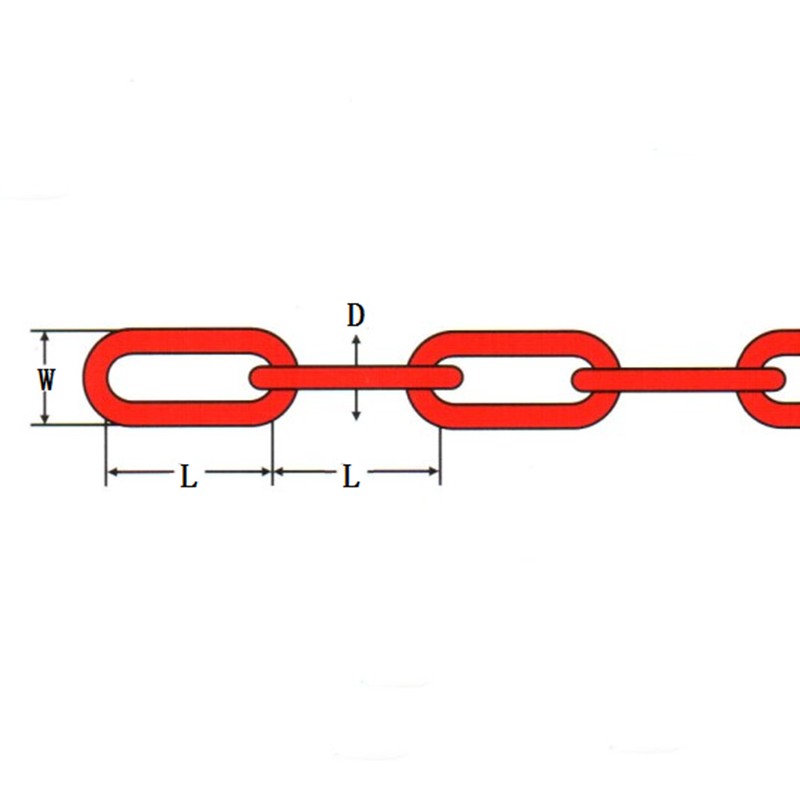

SIZE  D INSIDE LENGTH             (L) OUTSIDE WIDTH    (W) WORK LIMITED     LOAD PROOF LOAD BREAKING LOAD KG/M
MM ±MM MM ±MM MM ±MM KG N N KG
2 0.5 22 1.0 8 0.4 25 800 1250 0.06
2.5 24 1.1 10 0.5 40 800 2000 0.10
3 26 1.2 12 0.6 55 1050 3200 0.15
3.5 28 1.3 14 0.7 80 1540 3850 0.20
4 32 1.5 16 0.8 100 2000 6000 0.27
4.5 34 1.7 18 0.9 128 2500 6300 0.35
5 35 1.8 20 1 160 3150 10000 0.43
5.5 38.5 1.8 22 1.1 195 3800 9500 0.52
6 42 2.0 24 1.2 224 4500 14000 0.63
7 49 2.5 28 1.4 300 6000 18000 0.86
8 1 52 2.5 32 1.6 400 8000 25000 1.10
8.5 56 2.8 34 1.7 460 9000 22500 1.25
9 59 3.0 36 1.8 530 10500 32000 1.41
10 65 3.2 40 2 630 12500 40000 1.75
11 72 3.4 44 2 790 15800 47500 2.11
12 78 3.6 48 2.3 940 18800 56500 2.55
13 82 4.0 52 2.5 1000 21200 63000 2.95
16 100 5.0 64 3.2 1600 33000 100000 4.45
18 113 5.2 70 3.2 2120 42300 127000 5.65
19 119 5.6 72 3.4 2370 47300 142000 6.25
20 120 6.0 75 3.8 2500 50000 160000 7.00
22 127 6.0 82 4 3170 63300 190000 8.55
25 140 6.6 85 4.2 4090 81700 245000 10.90
28 152 7.0 96 4.7 6000 120000 300000 13.90
32 171 7.8 108 5.2 8000 160000 400000 18.20
