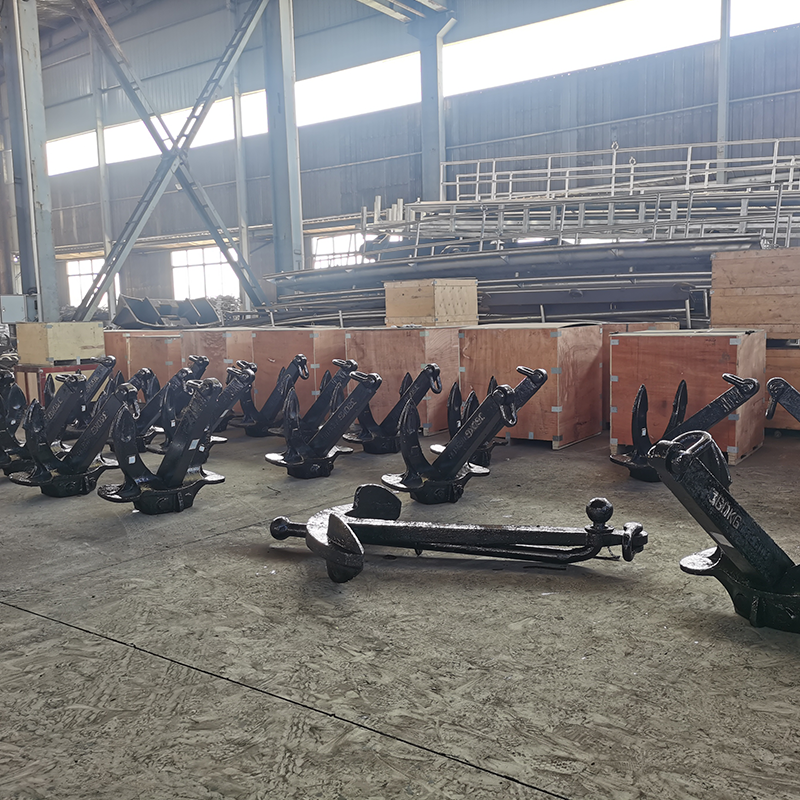

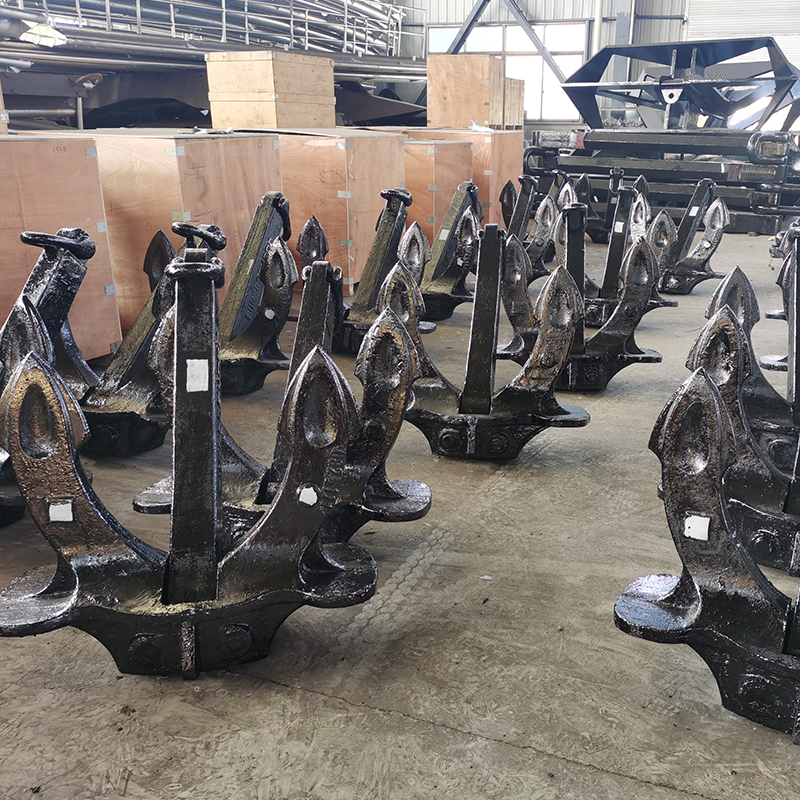

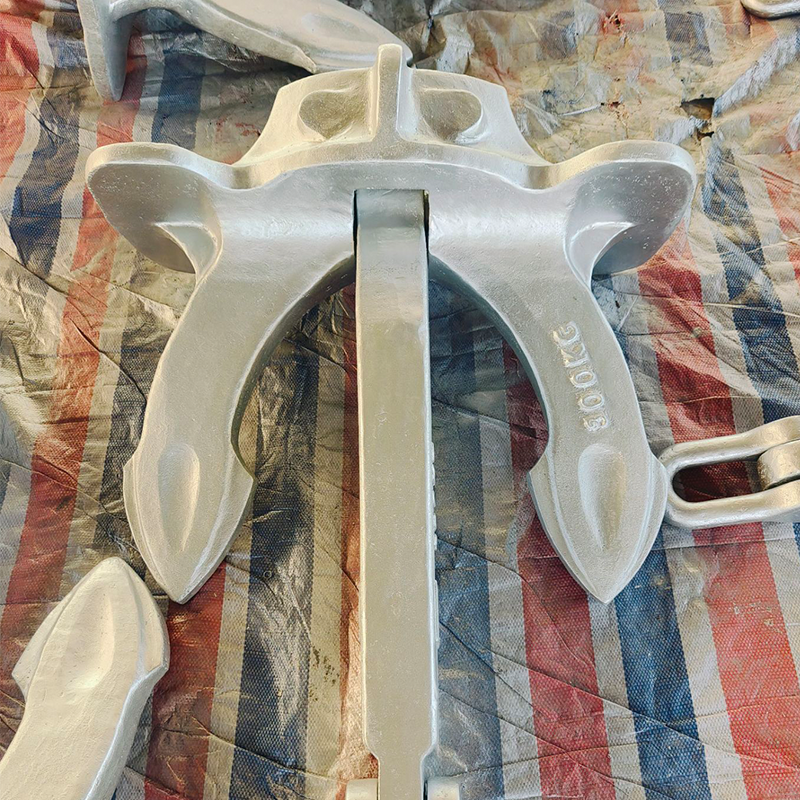

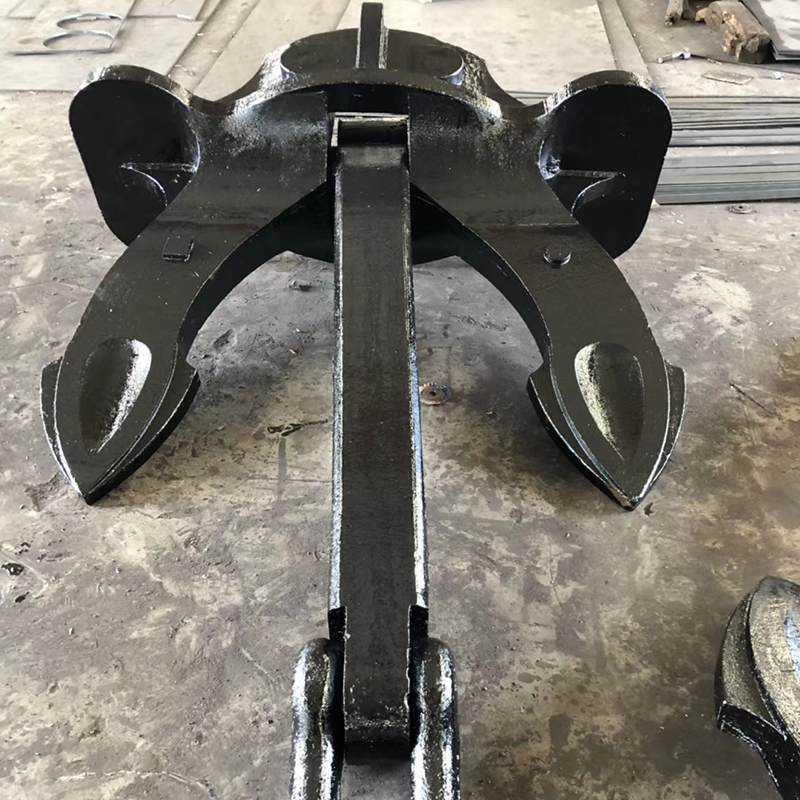

YFA-01 YFB-02 YFC-03 Hall Anchor

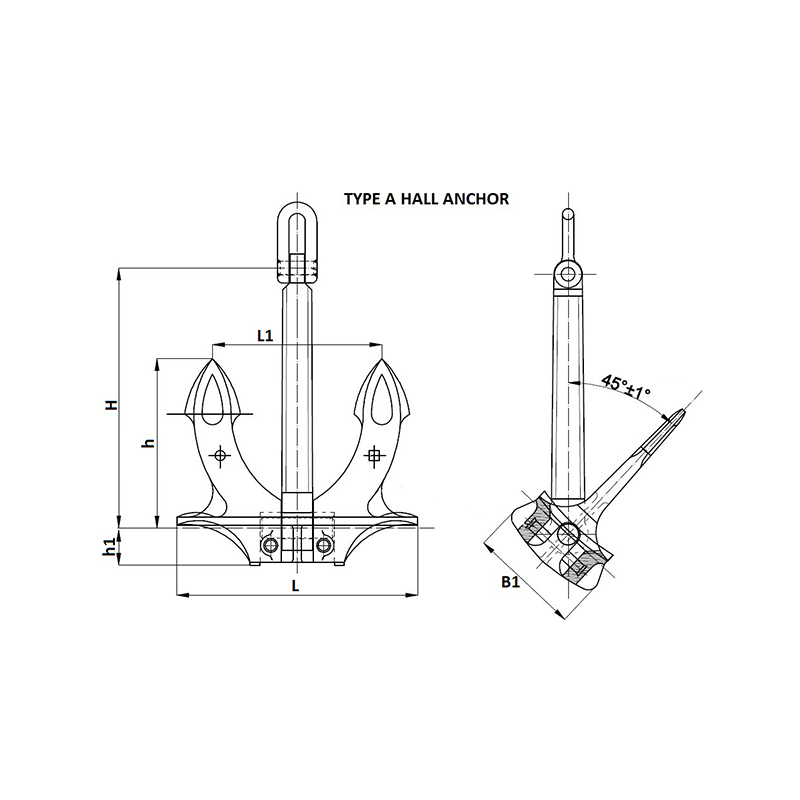

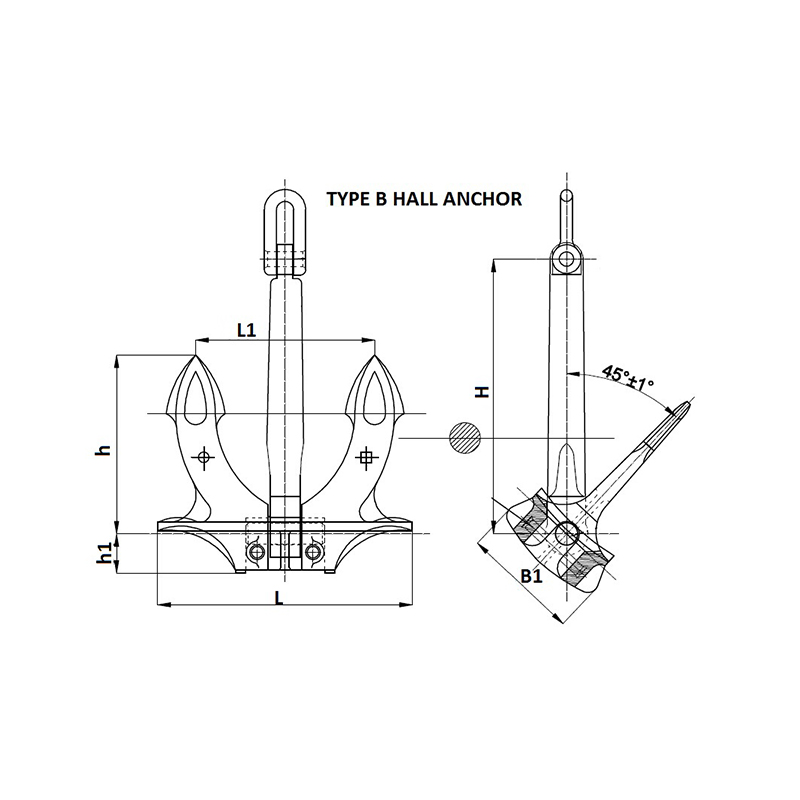

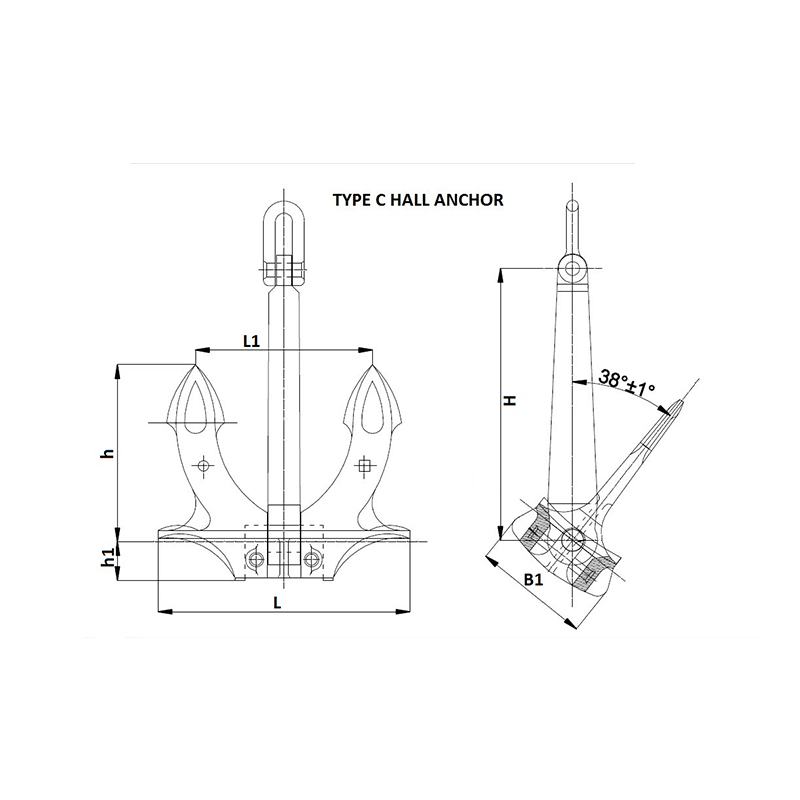

It is a common stockless anchor. There are three types of Hall anchors, namely A, B, and C. The angle of A and B is 42°, the anchor rod is longer, A is a square rod, and B is a round rod. The angle of C is 38°, the anchor rod is shorter, and the anchor rod is square. This anchor is usually used as the anchor of navigation and mooring equipment. It is suitable for various soil types and is easy to store. However, it is easy to damage the surface coating of the hull when storing. Its grip ratio is about 1:4.

Inquiry

Product Description

NOMINAL
WEIGHT(KG)
SIZE(mm)
H h h1 L L1 B1
Type A Type B Type C
40 557 557 430 303 67 430 303 198
60 637 637 492 347 76 492 347 227
100 760 760 590 410 90 584 410 270
125 814 814 629 443 97 629 443 290
150 866 866 665 470 103 670 470 308
180 919 919 718 500 109 710 500 327
240 1019 1019 788 552 120 790 552 361
300 1095 1095 850 595 130 844 595 388
360 1160 1160 898 630 138 898 630 412
420 1160 1160 946 660 145 946 660 434
480 1222 1222 986 690 152 988 690 454
570 1355 1355 1042 732 161 1042 732 481
660 1356 1356 1093 769 169 1096 769 506
780 1506 1506 1170 813 178 1160 813 535
900 1580 1580 1215 855 188 1220 855 560
1140 1645 1645 1268 855 188 1220 855 560
1440 1705 1705 1316 926 203 1319 926 605
1740 1778 1778 1378 891 195 1268 891 584
1020 1844 1844 1448 965 203 1379 965 630
1290 1906 1906 1511 1035 226 1475 1035 677
1590 2031 1966 1571 1068 234 1517 1068 698
1920 1966 2031 1602 1104 241 1568 1104 722
2100 2093 2093 1651 1120 245 1560 1120 732
2280 2207 2150 1716 1194 255 1657 1165 763
2460 2150 2207 1785 1222 262 1700 1194 784
2640 2259 2259 1890 1253 265 1730 1222 796
2850 2318 2318 1843 1165 275 1787 1253 822
3060 2374 2347 1935 1283 282 1832 1283 841
3300 2432 2432 1985 1317 288 1880 1317 862
3540 2490 2490 2032 1349 295 1926 1394 883
3780 2547 2610 2077 1376 302 1965 1376 902
4050 2610 2547 2125 1406 309 2008 1406 924
4320 2695 2695 2171 1465 316 2051 1435 943
4590 2712 2712 2216 1510 322 2093 1465 962
4890 2769 2769 2263 1569 329 2135 1498 984
5000 2800 2800 2369 1605 332 2156 1510 992
5610 2899 2899 2317 1435 345 2234 1569 1031
6000 2965 2965 2422 1498 352 2284 1605 1054
6450 3037 3037 2482 1644 361 2340 1644 1080
6900 3100 3100 2592 1681 369 2393 1681 1105
7350 3100 3100 2538 1688 370 2400 1688 1109
7800 3235 3235 2644 1752 385 2493 1752 1152
8300 3363 3363 2699 1788 393 2545 1788 1176
8500 3355 3355 2804 1800 385 2565 1800 1184
9300 3430 3430 2742 1850 395 2632 1850 1226
9900 3502 3502 2920 1896 417 2699 1896 1248
10500 3571 3571 2863 1934 417 2752 1943 1273
11100 3638 3638 2975 1970 425 2803 1970 1297
11700 3702 3702 3028 2005 441 2853 2005 1320
12300 3764 3764 3079 2072 448 2901 2039 1342
12900 3824 3824 3128 2039 455 2947 2072 1363
13500 3882 3882 3176 2104 462 2992 2104 1384
14100 3939 3939 3222 2135 469 3036 2135 1404
14700 3994 3994 3267 2165 476 3078 2165 1424
15400 4056 4056 3318 2199 483 3126 2199 1446
16100 4117 4117 3368 2232 490 3173 2232 1468
16900 4184 4184 3423 2268 498 3225 2268 1492
17800 4252 4252 3479 2308 506 3281 2308 1518
18800 4330 4330 3543 2350 516 3341 2350 1546
20000 4420 4420 3617 2399 526 3411 2399 1578
21500 4528 4528 3705 2458 539 3494 2458 1617
23000 4631 4631 3789 2514 551 3573 2514 1654
24500 4730 4730 3870 2568 563 3649 2568 1689
26000 4825 4825 3947 2619 574 3722 2619 1723
27500 4916 4916 4021 2668 585 3792 2668 1756
29000 5004 5004 4093 2716 595 3860 2716 1787
31000 5126 5126 4188 2774 609 3949 2774 1822
33000 5234 5234 4276 2833 622 4032 2833 1860
35500 5363 5363 4381 2903 637 4132 2903 1906
38500 5510 5510 4502 2982 655 4245 2982 1958
42000 5672 5672 4634 3070 674 4370 3070 2015
46000 5847 5847 4777 3165 695 4505 3165 2078
