German Standard Din766 Chain Link Chain

The German standard DIN766 link chain has an inner width range of 3.5mm to 43.0mm and an outer width range of 7.5mm to 108.8mm, which can be adapted to a variety of equipment and application scenarios. The chain weight varies from 0.07kg to 23.00kg per meter depending on the specifications, meeting light to heavy requirements. Each specification of the chain is precisely designed to meet different load requirements and has good durability and stability.

Inquiry

German Standard Din766 Chain Link Chain
German Standard Din766 Chain Link Chain

Product Description

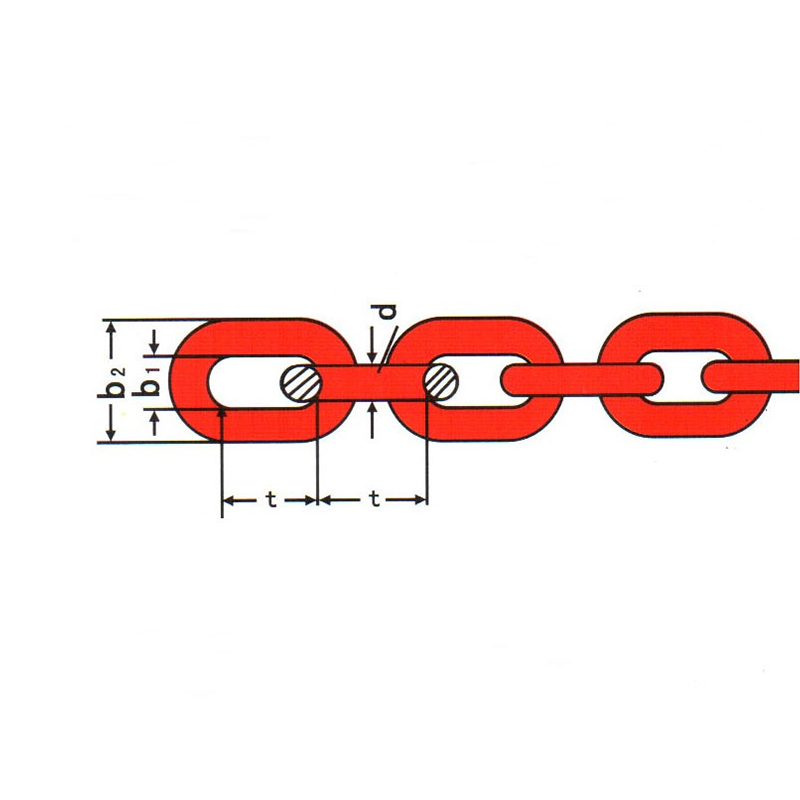

SIZE D INSIDE LENGTH (L) INSIDE WIDTH  (B1) OUTSIDE WIDTH (B2) LENGTH PER 1  LINKS WEIGHT PER  M
D
SIZE		 ±MM MM ±MM MM MM MM ±MM MM KG
2 0.2 12 0.2 3.5 7.5 132 1.0 0.5 0.07
3 0.2 16 0.2 4.2 11.0 176 1.4 0.7 0.16
4 0.2 16 0.3 5.0 13.5 176 2.1 1.1 0.32
5 0.2 18.5 0.4 6.0 17.0 203.5 2.4 1.2 0.50
6 0.2 18.5 0.4 7.2 20.2 203.5 2.4 1.2 0.80
7 0.3 22 0.4 8.4 23.8 242 3.0 1.4 1.10
8 0.3 24 0.4 9.6 27.2 264 3.2 1.5 1.40
9 0.4 27 0.5 10.8 30.6 297 3.6 1.8 1.80
10 0.4 28 0.5 12.0 34.0 308 3.7 1.9 2.20
11 0.4 31 0.5 13.2 37.4 341 4.0 2.0 2.70
12 0.5 36 0.6 14.4 40.8 396 4.4 2.2 3.10
13 0.5 36 0.6 15.6 44.2 396 4.6 2.4 3.80
14 0.6 41 0.7 16.8 47.6 451 5.4 2.7 4.40
16 0.6 45 0.8 19.2 54.4 495 6.6 3.0 5.70
18 0.9 50 0.8 21.6 61.2 550 6.6 3.3 7.30
19 0.9 53 0.9 22.8 64.6 583 7.0 3.7 7.97
20 1.0 56 1.0 24.0 68.0 616 7.4 3.7 9.00
22 1.2 62 1.1 26.4 75.0 682 8.0 4.0 11.00
23 1.2 64 1.1 27.6 78.2 704 8.4 4.2 12.00
26 1.3 73 1.2 31.2 88.4 803 9.6 4.8 15.00
28 1.4 78 1.3 33.8 95.2 858 10.2 5.1 18.00
30 1.5 84 1.4 41.0 102.0 924 11.0 5.5 19.50
32 1.6 90 1.5 43.0 108.8 990 11.8 5.9 23.00
