Home / Products / Outfitting Parts / YF-Bollards Type B ISO13795-2012

YF-Bollards Type B ISO13795-2012

YF-Bollards type B ISO13795-2012 safe working load (SWL) ranges from 5.5 tons to 143 tons. The design combines efficiency and safety to ensure reliable support in complex mooring environments. The bollard has high tensile strength and durability, weighs from 45kg to 1850kg, and is combined with precision manufacturing technology, suitable for use in various ports and docks. Its innovative structural design enables it to provide good load support when using a single cable.

Inquiry

Product Description

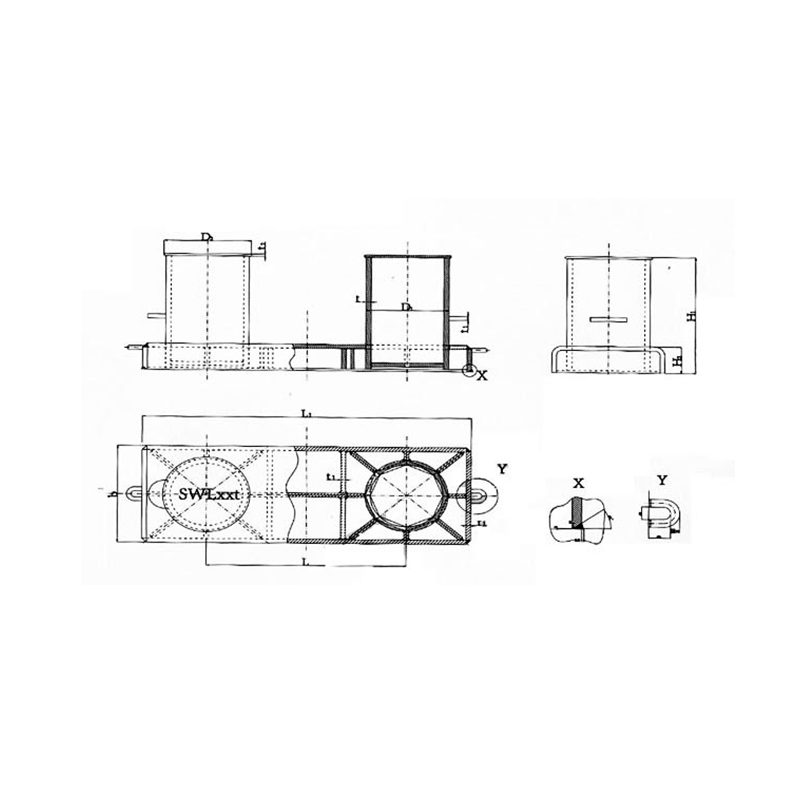

Nominal size D1 D2 H1 H2 b L L1 t t1 t2 R SWL                                               (one rope use) Calculated     weight (kg)
150 165.2  185 320 80 225 400 670 8 8 6 40 54KN 5.5t 45
200 216.3  240 365 85 290 500 860 8 8 6 50 82KN 8.4t 68
250A 267.4  290 470 100 360 630 1065 12 11 8 60 156KN 16t 150
250B 267.4  290 470 100 360 630 1065 10 8 7 60 127KN 13t 119
300A 318.5  340 575 125 430 800 1300 21.5 20 9 70 332KN 34t 383
300B 318.5  340 575 125 430 800 1300 12 9 9 70 186KN 19t 203
350A 355.6  380 655 145 480 890 1475 26 23.5 11 80 443KN 45t 582
350B 355.6  380 655 145 480 890 1475 14 13 9 80 244KN 25t 333
400A 406.4  430 705 160 550 1000 1630 28 26 13 85 594KN 61t 793
400B 406.4  430 705 160 550 1000 1630 15 13.5 11 85 326KN 33t 441
450A 457.2  480 745 170 620 1100 1810 29 26 14 90 753KN 77t 979
450B 457.2  480 745 170 620 1100 1810 14.5 13 11 90 382KN 39t 517
500A 508.0  530 790 190 690 1250 2040 32 29 16 100 992KN 101t 1321
500B 508.0  530 790 190 690 1250 2040 14.5 13 11 100 457KN 47t 631
550A 558.8  580 840 210 750 1380 2240 31 28 16 110 1131KN 115t 1530
550B 558.8  580 840 210 750 1380 2240 21 19 11 110 781KN 80t 1059
600 609.4  630 875 225 820 1550 2490 33 28 16 120 1401KN 143t 1850

Contact Us for More Details
