Anchor Chain

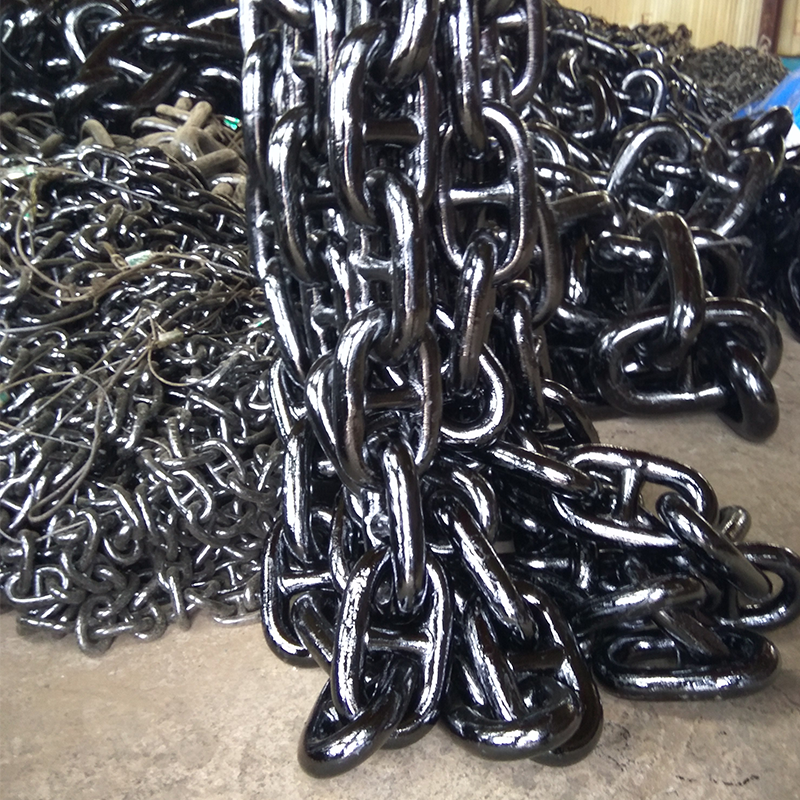

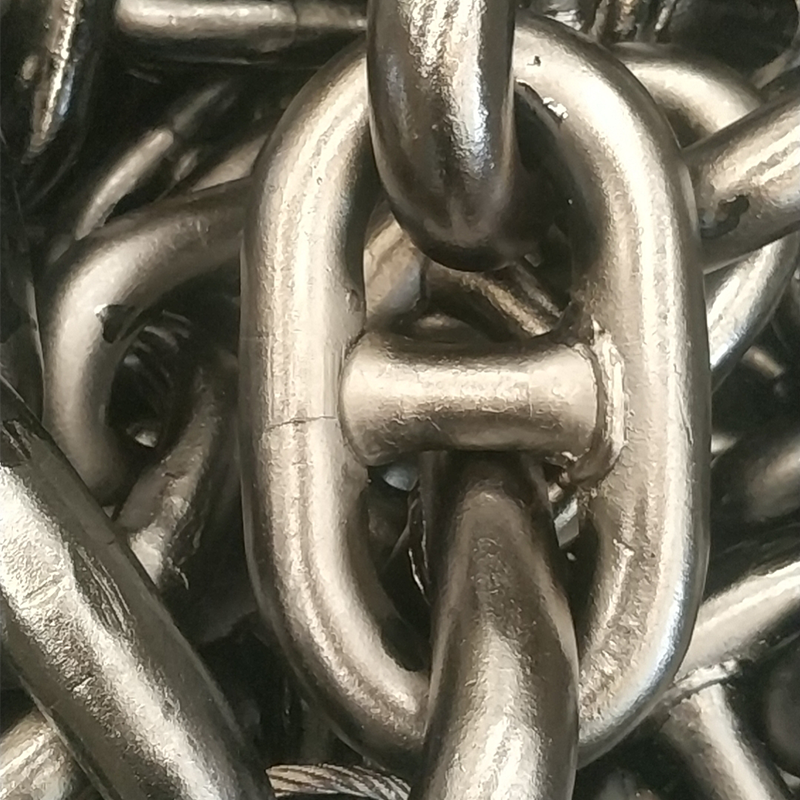

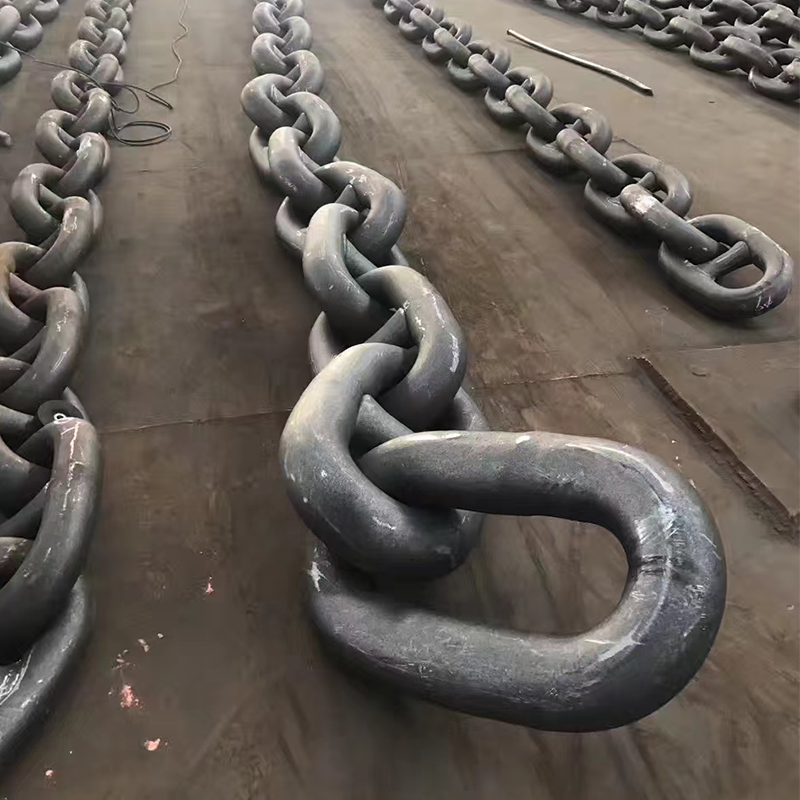

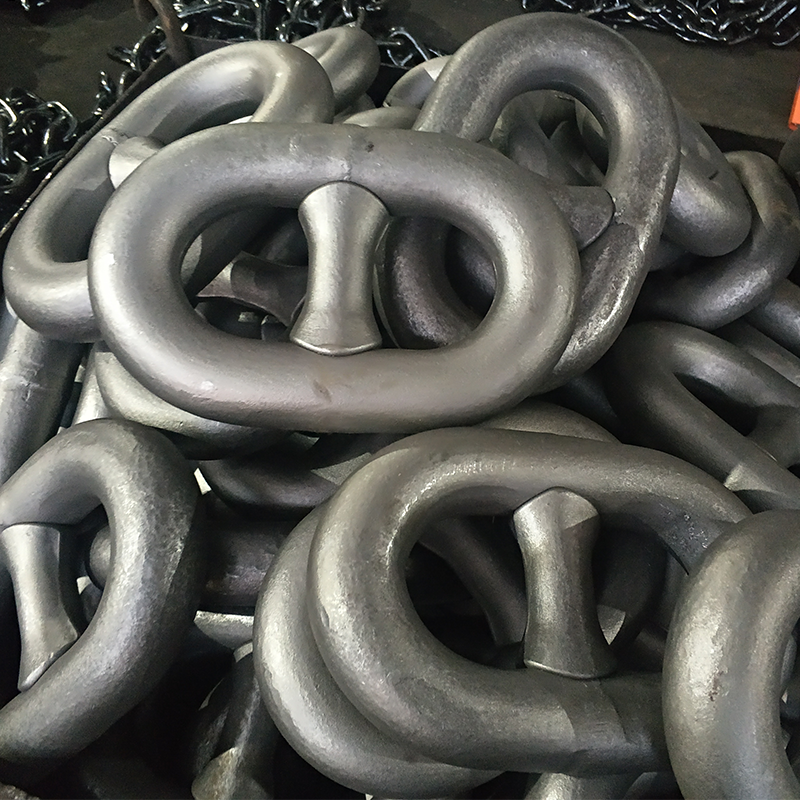

The studded anchor chain is a high-strength connection device widely used in ships and marine engineering. It can be divided into multiple specifications according to the chain diameter (D) and the section weight (27.5m weight), ranging From 1/2 inch (12.5 mm) to 6-3/8 inch (162 mm), to meet the needs of different ships and sea conditions. Its chain diameter range is wide, the material is sturdy, and it has good tensile strength and corrosion resistance, making it suitable for harsh marine environments. Can ensure that the anchor chain provides sufficient grip and stability on the seabed.

Inquiry

Anchor Chain
Anchor Chain
Anchor Chain
Anchor Chain
Anchor Chain
Anchor Chain

Product Description

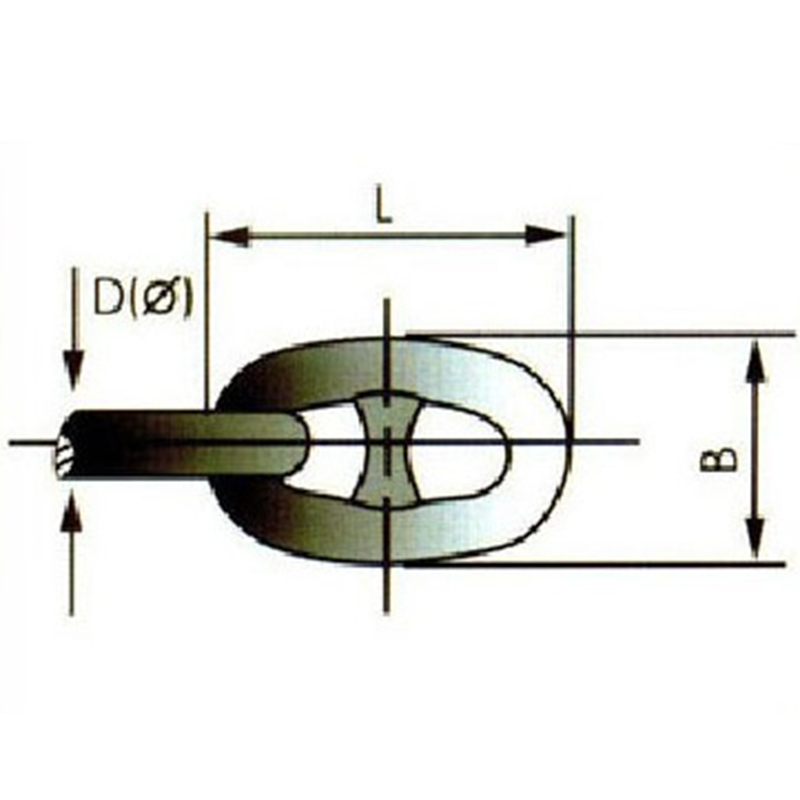

 STUD LINK ANCHOR CHAIN, LINK SIZE(6*3.6D), TEST LOAD AND WEIGHT
 D(φ)
DIAMETER  		 CHAIN LINK
SIZE  		 AM1
U1 STUD LINK CHAIN		 AM2
U2 STUD LINK CHAIN		 AM3
U3 STUD LINK CHAIN		 APPROX. WEIGHT
OUTSIDE
LENGTH 		 OUTSIDE  WIDTH      PROOF LOAD BREAKING      LOAD PROOF LOAD BREAKING
LOAD		 PROOF    LOAD  BREAKING      LOAD 27.5M
INCH MM MM MM KN KN KN KN KN KN KG
1/2 12.5 75 45 46 66 66 92 92 132 98.00
9/16 14 84 50.4 58 82 82 116 116 165 119.00
5/8 16 96 57.6 76 107 107 150 150 216 156.00
11/16 17.5 105 63 89 127 127 179 179 256 186.00
3/4 19 114 68.4 105 150 150 211 211 301 230.00
13/16 20.5 123 73.8 123 175 175 244 244 349 260.00
7/8 22 132 79.2 140 200 200 280 280 401 300.00
15/16 24 144 86.4 167 237 237 332 332 476 370.00
1-1/16 26 156 93.6 194 278 278 389 389 556 431.00
1-1/8 28 168 100.8 225 321 321 449 449 642 496.00
1-3/16 30 180 108 257 368 368 514 514 735 564.00
1-1/4 32 192 115.2 291 417 417 583 583 833 635.00
1-5/16 34 204 122.4 328 468 468 655 655 937 712.00
1-7/16 36 216 129.6 366 523 523 732 732 1050 800.00
1-1/2 38 228 136.8 406 581 581 812 812 1160 887.00
1-9/16 40 240 144 448 640 640 896 896 1280 1032.00
1-5/8 42 252 151.2 492 703 703 981 981 1400 1084.00
1-3/4 44 264 158.4 538 769 769 1080 1080 1540 1197.00
1-13/16 46 276 165.6 585 837 837 1170 1170 1680 1310.00
1-7/8 48 288 172.8 635 908 908 1270 1270 1810 1438.00
2 50 300 180 686 981 981 1370 1370 1960 1546.00
2-1/16 52 312 187.2 739 1060 1060 1480 1480 2110 1661.00
2-1/8 54 324 194.4 794 1140 1140 1590 1590 2270 1791.00
2-3/16 56 336 201.6 851 1220 1220 1710 1710 2430 1926.00
2-5/16 58 348 208.8 909 1290 1290 1810 1810 2600 2086.00
2-3/8 60 360 216 969 1380 1380 1940 1940 2770 2249.00
2-7/16 62 372 223.2 1030 1470 1470 2060 2060 2940 2361.00
2-1/2 64 384 230.4 1100 1560 1560 2190 2190 3130 2516.00
2-9/16 66 396 237.6 1160 1660 1660 2310 2310 3300 2676.00
2-11/16 68 408 244.8 1230 1750 1750 2450 2450 3500 2885.00
2-3/4 70 420 252 1290 1840 1840 2580 2580 3690 3010.00
