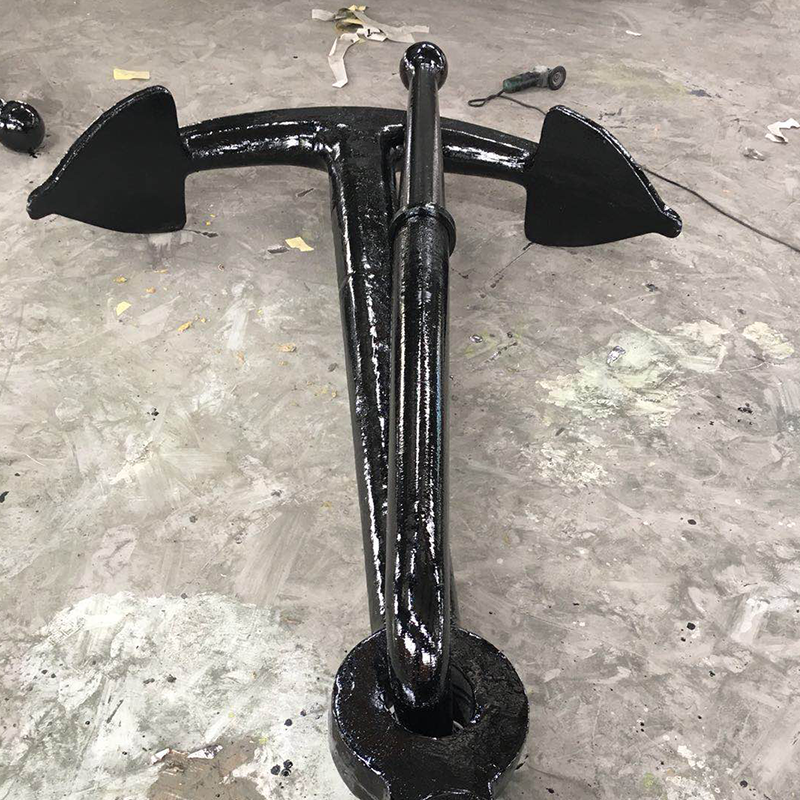

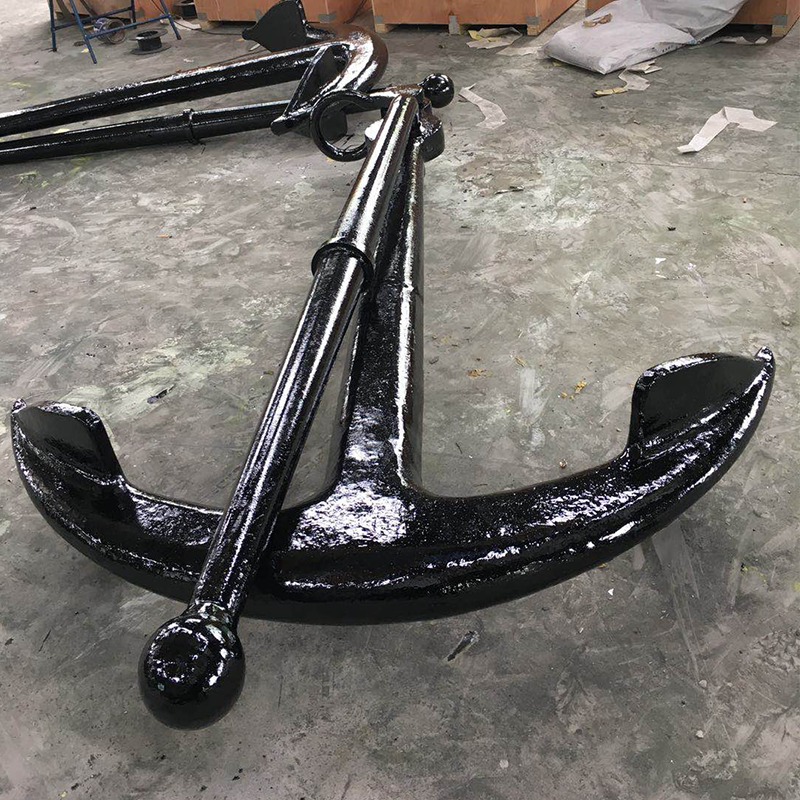

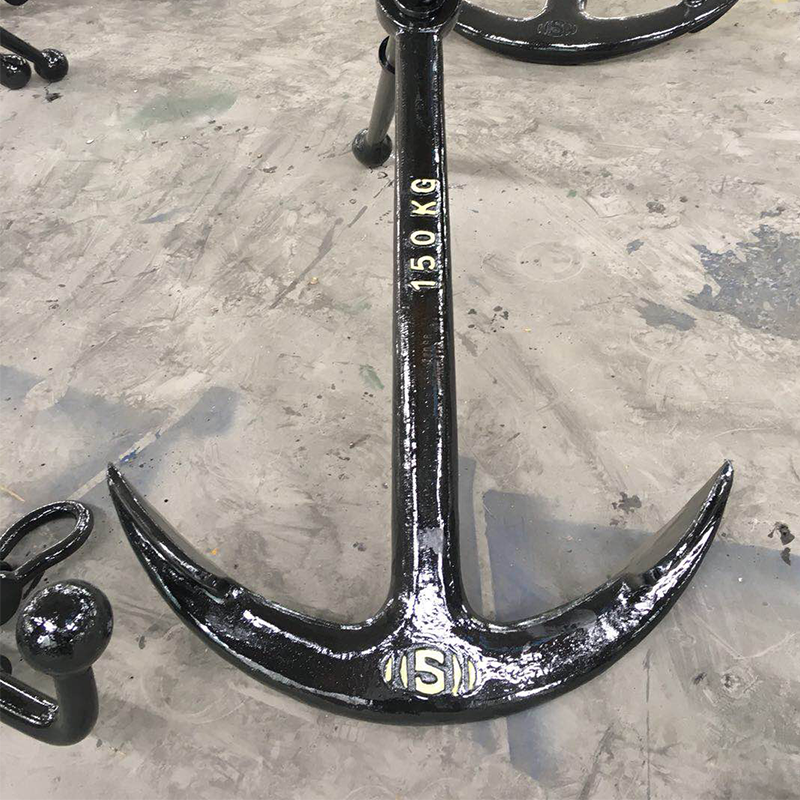

YF-Japan Stock Anchor

The anchor claw and the anchor rod are made into one piece, and the crossbar is located near the anchor shackle, forming a cross with the anchor claw. After the anchor is grounded, once the force is applied, the crossbar end is used as a fulcrum to make the anchor claw rotate and bite into the bottom. It is suitable for sand, hard mud, and gravel bottoms, and can also be used for reef bottoms. Its disadvantage is that it is inconvenient to store. It is usually used for long-term fixed mooring. The grip coefficient is 1:4~6.

Inquiry

Product Description

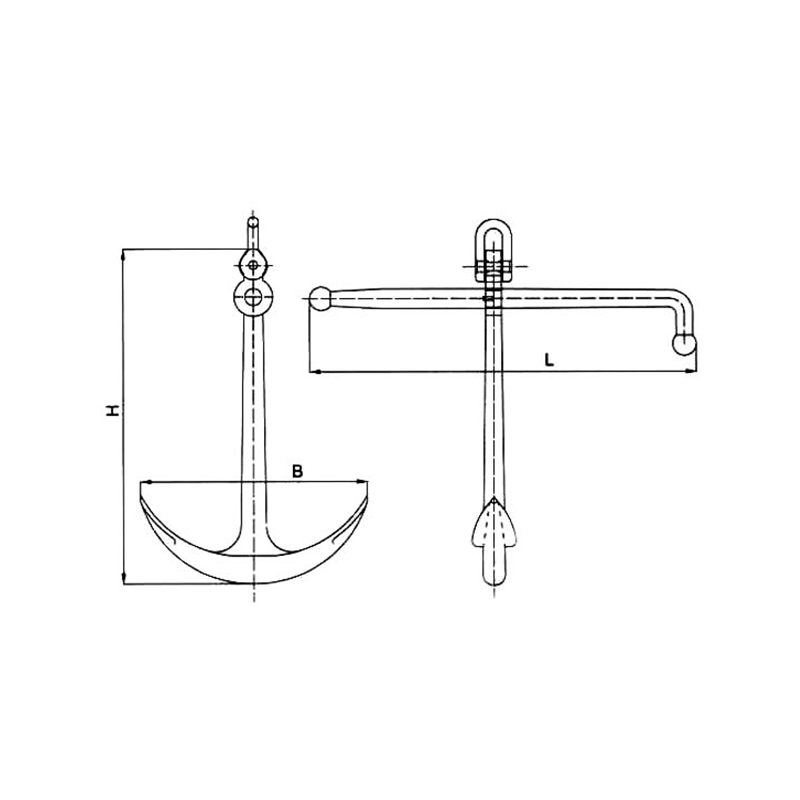

NOMINAL
WEIGHT(KG)
SIZE(mm)
H L B
500 2000 2065 1350
700 2260 2335 1510
750 2310 2342 1560
1000 2550 2637 1700
1500 2890 2960 1950
2000 3160 3272 2140
3000 3630 3555 2650
3500 3810 3820 2570
4000 4000 4135 2920
5000 4310 4470 3140
6000 4580 4740 3330
7000 4820 4980 3530
8000 5040 5215 3620
