YF-Bollard Type A Cb-T 554-96

YF-Cable bollard type A is designed according to CB-T 554-96 standard, covering a variety of specifications, ranging from 100mm to 800mm, weight range from 19kg to 3071kg, suitable for different types and sizes of ships and port applications. Known for its high strength and durability, the product can provide stable performance under high load conditions, ensuring the fixation of cables and the safety of ship berthing.

Inquiry

Product Description

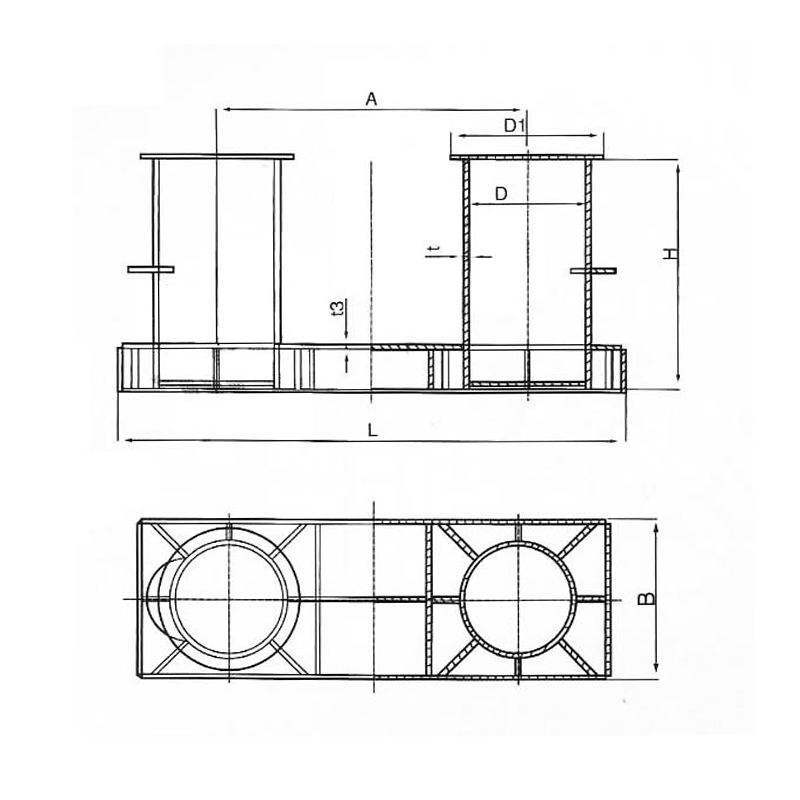

Nominal dia. D D1 t A B L H t3 Weight              (kg)
100 114 145 10 250 165 445 196 6 19
125 140 180 10 315 195 540 246 6 29
160 168 210 10 400 225 670 316 6 45
200 219 270 10 500 290 860 378 8 80
250 273 335 11 630 360 1065 470 10 141
315 325 390 15 800 430 1300 597 12 264
355 351 420 17 890 480 1475 663 13 358
400 402 480 18 1000 550 1630 749 14 499
450 450 545 19 1130 620 1840 841 16 680
500 508 610 20 1250 690 2040 928 18 911
560 560 670 22 1380 750 2240 1025 20 1208
630 610 730 24 1570 820 2510 1152 22 1601
710 712 840 25 1750 960 2840 1294 24 2252
800 813 940 26 2000 1100 3240 1480 25 3071
