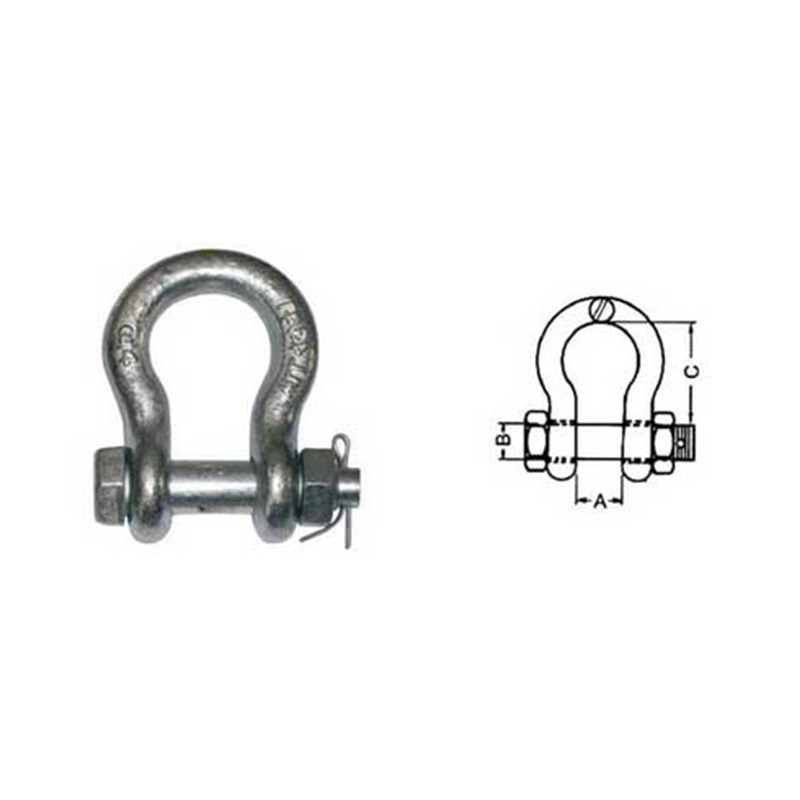

G2130 American Bow Shackle

The size of the G2130 American bow shackle ranges from 12mm to 139.7mm, and the working load ranges from 1/2 ton to 150 tons, which is suitable for various hoisting and heavy-duty operations. Each specification of shackle has good strength and can work stably for a long time in harsh environments. It is widely used in construction, shipbuilding, mining, and other industries

Inquiry

Product Description

SPECIFICATION  INCH WORKING LOAD T SIZE MM UNIT WEIGHTKG
A B C
1/4 1/2 12 7.9 28.7 0.08
5/16 3/4 13.5 9.7 31 0.10
3/8 1 16.8 11.1 36.6 0.15
7/16 1-1/2 19 12.7 43 0.22
1/2 2 20.6 16 47.8 0.36
5/8 3-1/4 27 19 60.5 0.76
3/4 4-3/4 31.8 22.3 71.4 1.23
7/8 6-1/2 36.6 25.4 84.1 1.79
1 8-1/2 43 28.7 95.3 2.78
1-1/8 9-1/2 46 31.7 108 3.75
1-1/4 12 51.6 35 119.1 5.31
1-3/8 13-1/2 57.1 38.1 133.4 7.18
1-1/2 17 60.4 41.4 146 9.43
1-3/4 25 73.1 50.8 177.8 15.38
2 35 82.5 57.1 196.9 23.70
2-1/2 55 104.9 69.9 266.7 44.57
3 85 127 82.5 330.2 69.85
3-1/2 120 133.4 95.3 371.6 120.20
4 150 139.7 108 368.3 153.32
