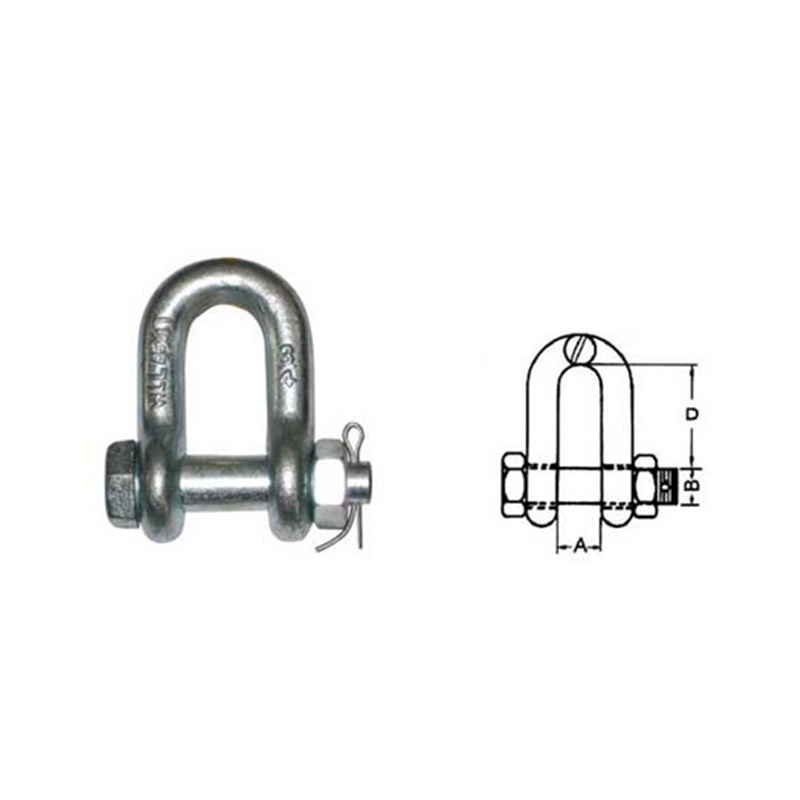

G2150 American D-Shackle (Stainless Steel)

G2150 American D-shaped shackle (stainless steel) is made of high-quality stainless steel, with good corrosion resistance and high strength, suitable for hoisting operations in various harsh environments. The product size ranges from 12mm to 139.7mm, and the single piece weight ranges from 0.06kg to 56.36kg to meet different load requirements. Each specification of the shackle is precision-processed to ensure safety and stability under high load.

Inquiry

Product Description

SPECIFICATION  INCH WORKING LOAD T SIZE MM UNIT WEIGHTKG
A B C
1/4 1/2 12 7.9 23.1 0.06
5/16 3/4 13.5 9.7 27.3 0.10
3/8 1 16.8 11.1 32.5 0.15
7/16 1-1/2 19 12.7 37.6 0.22
1/2 2 20.6 16 41.4 0.34
5/8 3-1/4 27 19 50.8 0.67
3/4 4-3/4 31.8 22.3 60.5 1.17
7/8 6-1/2 36.6 25.4 71.4 1.75
1 8-1/2 43 28.7 81 2.52
1-1/8 9-1/2 46 31.7 91 3.45
1-1/4 12 51.6 35 100 4.90
1-3/8 13-1/2 57.1 38.1 111 6.24
1-1/2 17 60.4 41.4 122 8.39
1-3/4 25 73.1 50.8 146 14.24
2 35 82.5 57.1 171.5 21.21
2-1/2 55 104.9 69.9 203.2 38.56
3 85 127 82.5 216 56.36
3-1/2 120 133.4 95.3 / /
4 150 139.7 108 / /
