Ordinary Malleable Cast Iron Shackle

Ordinary malleable cast iron shackles are made of high-strength malleable cast iron, with specifications ranging from 5 inches to 50 inches, working loads ranging from 90 tons to 8,000 tons, and product sizes covering different application requirements. The product design is sturdy and reliable, capable of handling harsh working conditions, with sizes ranging from 18.5mm to 53mm, suitable for a variety of lifting and industrial environments, providing strong support and safety.

Inquiry

Product Description

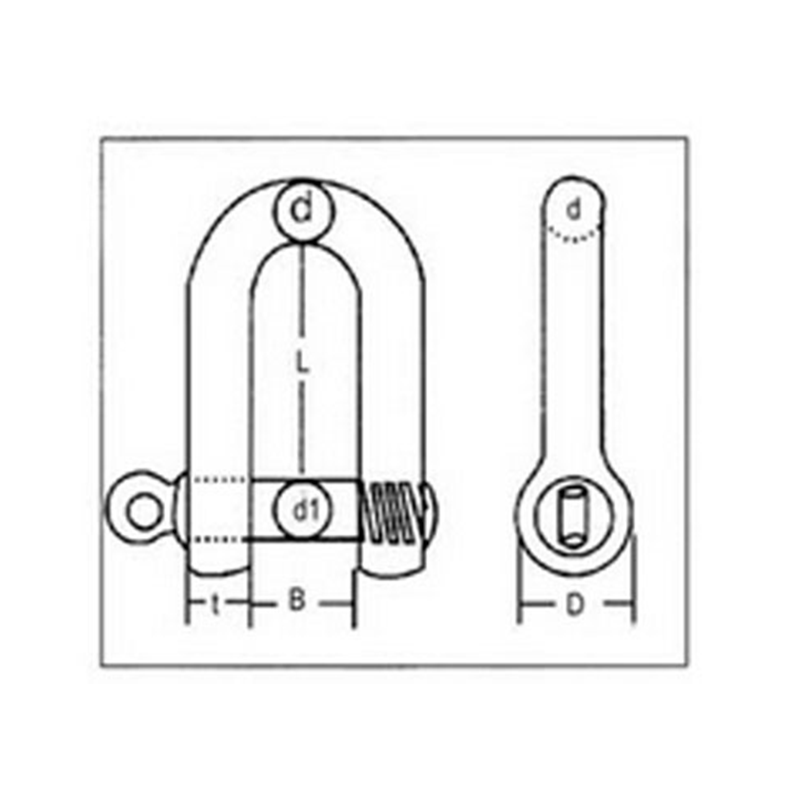

SPECIFICATION  INCH WORKING LOAD       T SIZE (MM) UNIT WEIGHTKG
B D L d1
5 90 10 10 18.5 5 0.026
6 150 12 11 25 6.5 0.028
8 250 14 15 31 8.5 0.065
10 400 18 17 36 10 0.08
12 600 24 23 46 13 2
16 800 30 32 59 17 0.495
20 1000 36 37 74 20 0.8
22 1500 43 43 86 23 1.26
25 2000 47 50 95 27 1.9
28 2500 55 56 110 30 2.65
32 3200 64 64 130 34 4
38 4200 76 76 145 40 7
44 6500 80 90 160 47 /
50 8000 90 100 185 53 /
