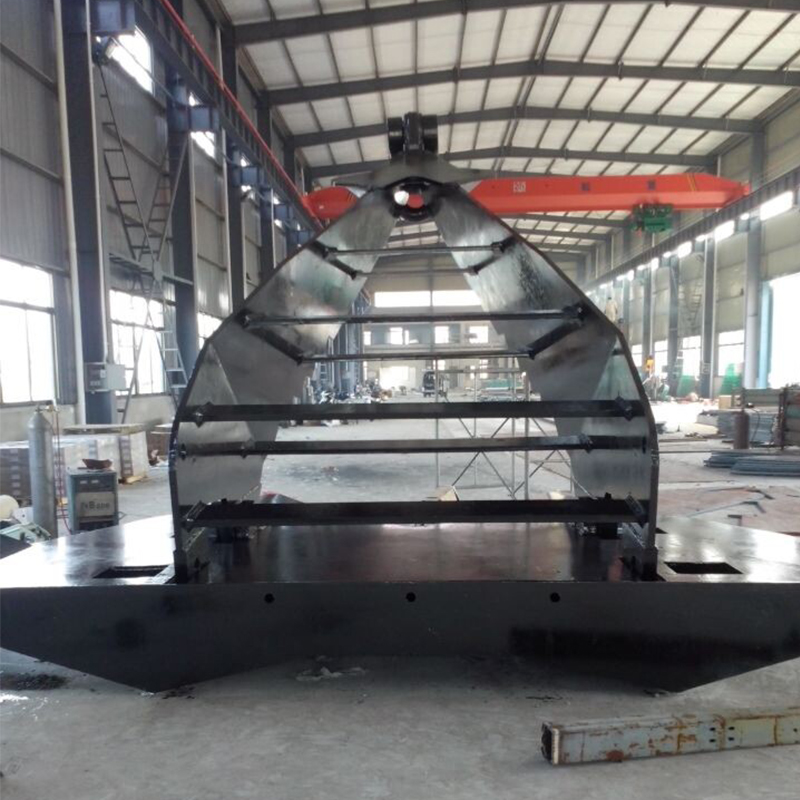

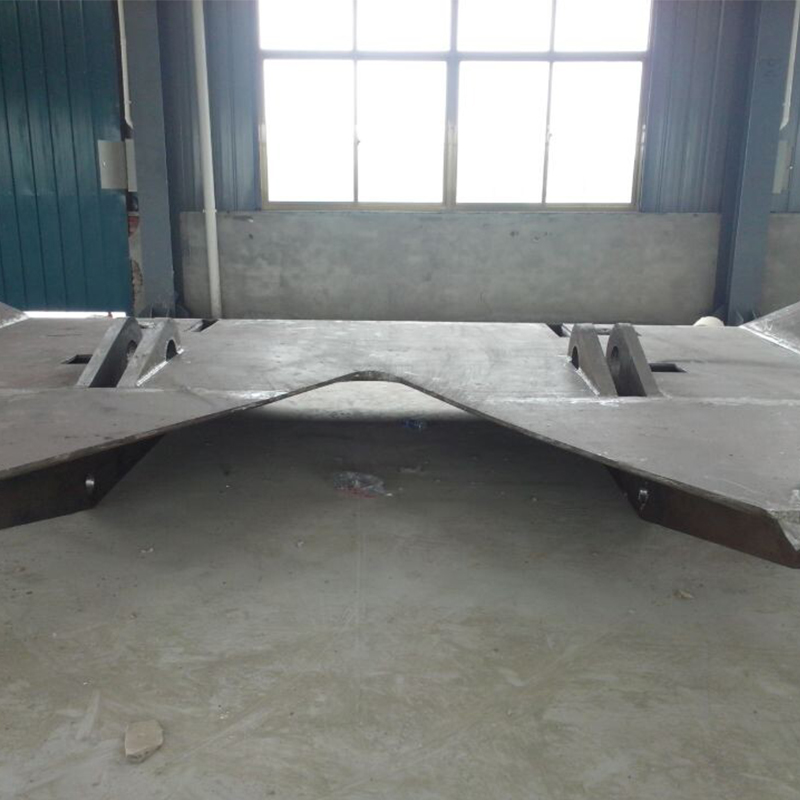

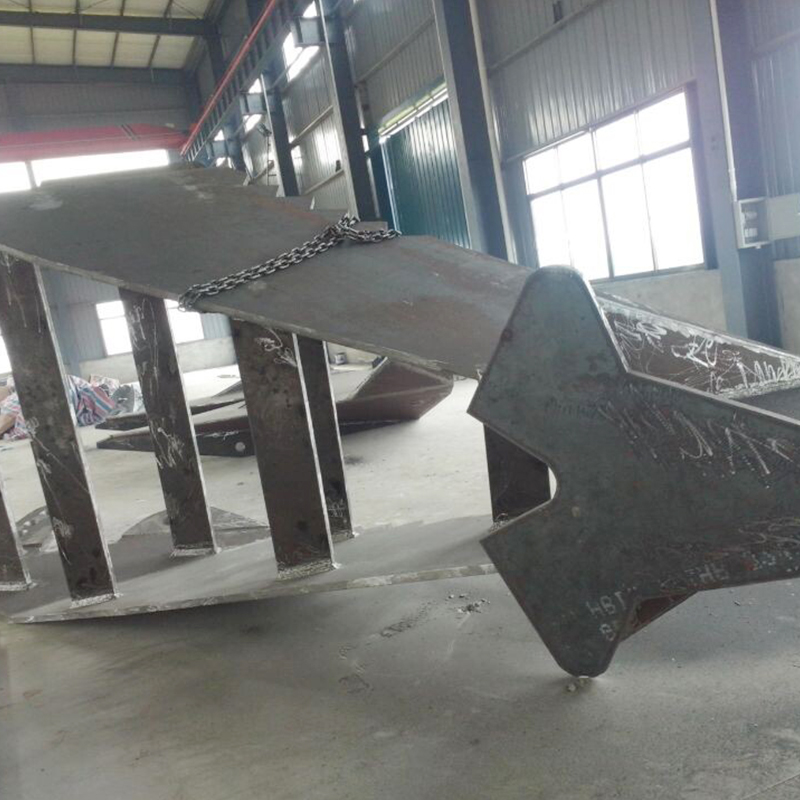

YF-17 High Holding Power Anchor

The area of ​​the anchor claw is 3-4 times larger than that of the cast steel Danforth anchor, so it is particularly suitable for soft mud and silt bottoms. It has a super high grip and the grip ratio can reach 1:50. The anchor claw and anchor rod are welded with steel plates. The anchor claw and anchor rod are connected with a pin. The anchor claw can be changed to 32° or 50°. The smaller angle is used for sand or hard mud, and the larger angle is used for silt.

Inquiry

Product Description

NOMINAL
WEIGHT(KG)

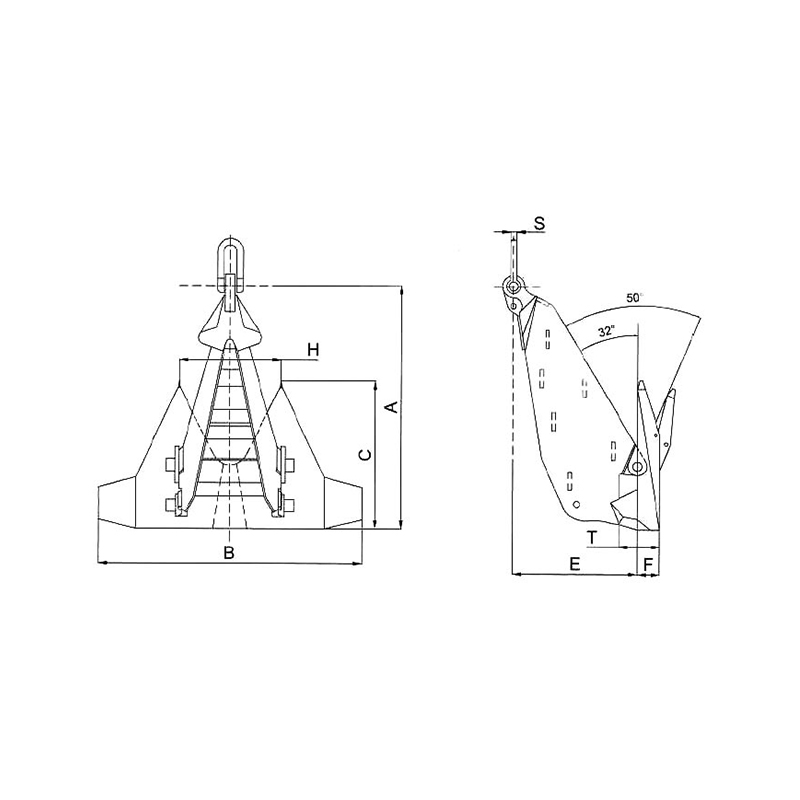

SIZE(mm)
A B C E F H T S
1000 2580 2780 1582 1314 236 1074 430 62
1500 2954 3184 1812 1505 271 1230 493 80
3000 3721 4011 2283 1896 342 1550 622 90
5000 4412 4756 2707 2248 406 1837 738 110
7000 4910 5290 3011 2500 453 2045 825 117
8000 5161 5563 3166 2629 474 2149 862 130
10000 5559 5992 3410 2832 511 2315 929 140
12000 5908 6368 3624 3010 543 2460 988 150
14000 6219 6704 3815 3169 572 2590 1040 160
15000 6364 6860 3904 3242 585 2650 1064 170
18000 6763 7290 4149 3446 622 2816 1131 180
20000 7004 7550 4297 3569 644 2917 1171 190
22000 7230 7794 4436 3684 665 3011 1209 200
25000 7545 8133 4629 3844 694 3142 1262 200
30000 8018 8645 4919 4085 737 3339 1341 220
